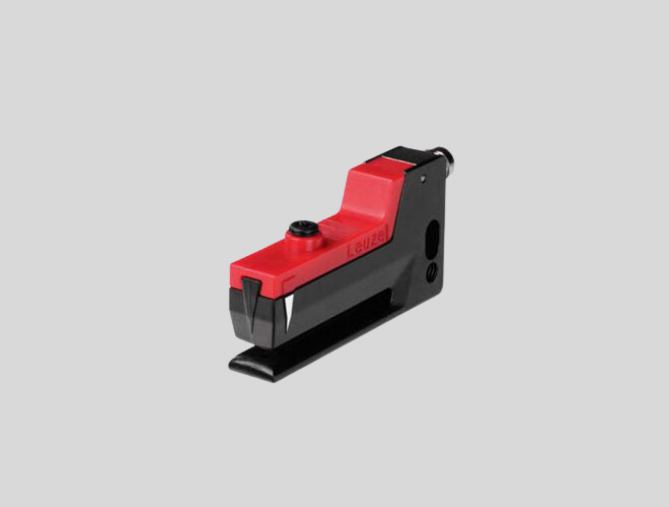

Leuze Label Gap Sensor
Fork Sensor
The Leuze Label Gap Sensors are available at Temachines and are ideal for industrial engineers. These sensors are simple to use, dependable, and quick. Models such as the GS 61 and GS 63 are known for their speedy and accurate detection.
They have clever infrared technology and are small. Are you trying to find a certain item? Your unique needs are satisfied by our GK 14 and GSU 14 series.
Leuze Label Gap Sensor
Check out our IGSU 14 and GSX 14 series for difficult tasks. Additionally, our GS 04 and GS 754B series are perfect for varying sizes. Select Leuze if you want exceptional productivity and accuracy in your work.

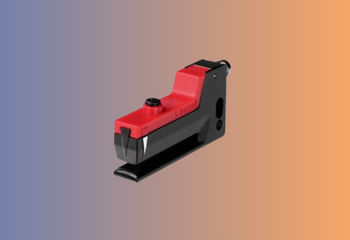

Leuze Label Gap Sensor: GS 61 Series
- Performance: High-speed detection with a maximum switching frequency of 10kHz.
- Light Source: Utilizes 940nm infrared light for reliable sensing.
- Design: Compact with a mouth width of 3mm and depth of 40mm.
- Connectivity: Options include M8 connectors (4-pin or 3-pin) or a 2m cable.

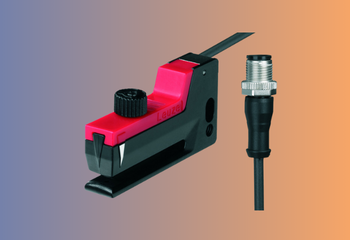

Leuze GS 63 Series
- Performance: High-speed detection with a maximum switching frequency of 10kHz.
- Light Source: Utilizes 940nm infrared light for reliable sensing.
- Design: Compact with a mouth width of 3mm and depth of 60mm.
- Connectivity: Features push-pull switching outputs.
- Power Requirements: Operating voltage of 10 – 30VDC, including residual ripple.

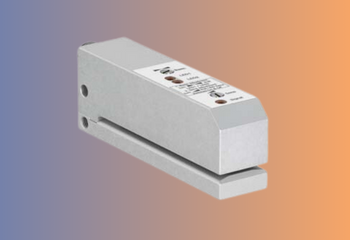

Leuze Gap Sensor: GK 14 Series
- Performance: switching frequency of 5000Hz and a response time of 0.1ms.
- Design: Mouth width of 0.9mm ± 0.1mm and depth of 85mm.
- Connectivity: 1 PNP and 1 NPN transistor output, direction-dependent and reversible.
- Power Requirements: 10 – 30VDC operating voltage, residual ripple ≤ 15% of UB.

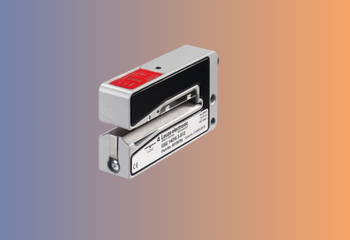

Leuze Label Sensor: GSU 14 Series
- Performance: switching frequency of 2,000 Hz.
- Design: Compact, with a mouth width of 4mm and depth of 80mm.
- Connectivity: IO-Link interface and two digital switching outputs.
- Power Requirements: Operating voltage of 18 – 30 VDC
- Environmental Suitability: Operates in temperatures from 0 to 60 °C.

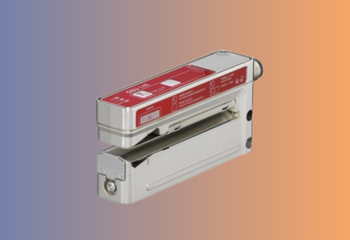

Leuze Fork Sensors: IGSU 14 Series
- Performance: High-speed detection with a typical response time of ≤ 200μs and repeatability of ± 0.2mm.
- Design: Compact with a mouth width of 4mm and depth of 68mm.
- Connectivity: Equipped with push-pull switching outputs.
- Power Requirements: Operating voltage of 12 – 30VDC
- Load Capacity: Supports capacitive loads up to 0.5μF.
