Leuze Proximity Sensor

Inductive Switches

Leuze proximity sensors are available in a variety of models from Temachines, including Leuze inductive sensor types, Leuze capacitive sensor types, and Leuze proximity switch options. We have all types of Leuze inductive sensors, including Leuze square, Leuze cylindrical, and miniature proximity sensors.

We even carry the highly sought-after Leuze Inductive Switch and Leuze proximity switches in stock. For every detection need, our extensive selection of Leuze sensors guarantees trustworthy performance and effective solutions—all at incredibly low rates.

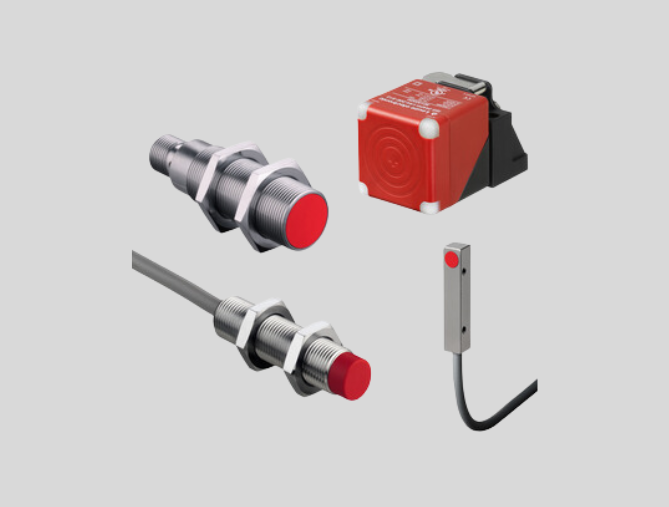

Leuze Proximity Sensor Inductive Switches

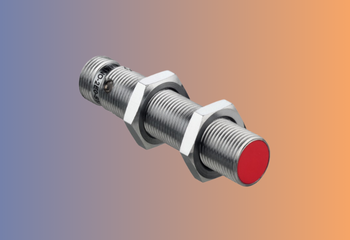

IS 112 MM4NC-6E0-M12 50129883

IS 112 MM/4NC-6E0-M12 | 50129883



  • Part no.: 50129883
  • Series: 112
  • Design: Cylindrical
  • Operating range: 0 … 4.8 mm
  • Thread size: M12 x 1 mm
  • Switching Principle: NC (normally closed)
  • Switching frequency: 800 Hz

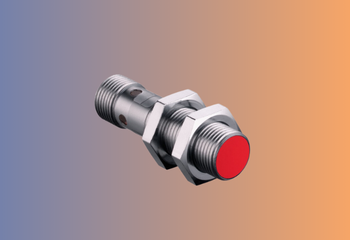

ISS 112MM4NO-4E0-M12 50136032

ISS 112MM4NO-4E0-M12 50136032



  • Part no.: 50129883
  • Series: 112
  • Design: Cylindrical
  • Operating range: 0 … 3.24 mm
  • Thread size: M12 x 1 mm
  • Switching Principle: NO (normally open)
  • Switching frequency: 3,000 Hz

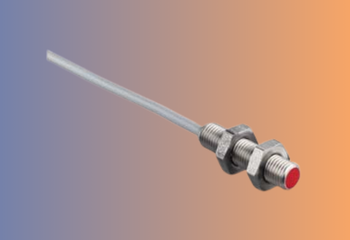

ISS 208MM4NO-2E0 50146967

ISS 208MM/4NO-2E0 | 50146967



  • Part no.: 50146967
  • Series: 208
  • Design: Cylindrical
  • Operating range: 0 … 1.6 mm
  • Thread size: M8 x 1 mm
  • Switching Principle: NO (normally open)
  • Switching frequency: 5,000 Hz

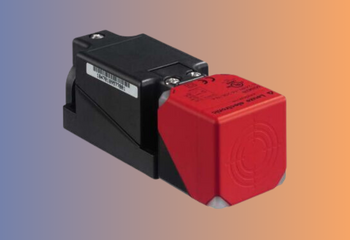

ISS 244PP.1/44-30N-S12 | 50145220<br />

ISS 244PP.1/44-30N-S12 | 50145220



  • Part no.: 50145220
  • Series: 244
  • Design: Cubic
  • Operating range: 0 … 24.3 mm
  • Dimension (W x H x L): 40 mm x 40 mm x 67 mm
  • Switching frequency: 100 Hz

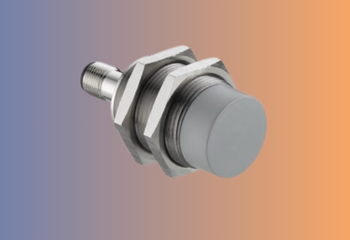

ISS 230MM44-22N-S12 50141493

ISS 230MM/44-22N-S12 | 50141493



  • Part no.: 50141493
  • Series: 230
  • Design: Cylindrical
  • Operating range: 0 … 17.82 mm
  • Thread size: M30 x 1.5 mm
  • Switching Principle: NC contact
  • Switching frequency: 1000 Hz

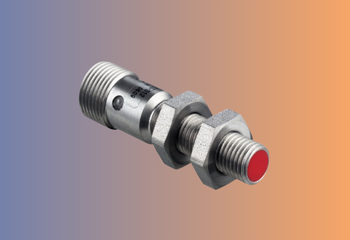

IS 208MM4NO-3E0-S12 50144033

IS 208MM/4NO-3E0-S12 | 50144033



  • Part no.: 50144033
  • Series: 208
  • Design: Cylindrical
  • Operating range: 0 … 2.43 mm
  • Thread size: M8 x 1 mm
  • Switching Principle: NO (normally open)
  • Switching frequency: 1,000 Hz
