Leuze Ultrasonic Sensor

Cubic & Cylindrical

Leuze Ultrasonic Sensors are available from Temachines; they are perfect in difficult circumstances when conventional sensors falter. They work well in dusty or damp conditions and are excellent at detecting a wide range of objects, regardless of whether they are transparent, dark, or shiny. The Leuze Ultrasonic Fork Sensor comes in two designs: cylindrical sensors are ideal for small or difficult-to-reach things, and cubic sensors work well with reflective surfaces. These sensors are versatile and easy to utilise for a variety of automation applications. For your automation requirements, look into the dependable and effective Leuze Ultrasonic Sensors.



Leuze Ultrasonic Sensor Cubic & Cylindrical
HTU418B-1000.W/4TX-M12 | 50124270<br />

HTU418B-1000.W/4TX-M12 | 50124270



  • Part no.: 50124270
  • Series: 418B
  • Design: Cylindrical
  • Operating range: 0.15 … 1 m
  • Operating Principle: Diffuse reflection
  • Switching Principle: NO (normally open)

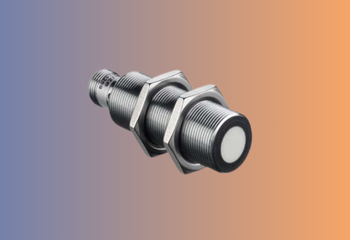

HTU418B-1300/4T4-M12 |  50124272<br />

HTU418B-1300/4T4-M12 | 50124272



  • Part No. : 50124272
  • Series: 418B
  • Design: Cylindrical
  • Operating range: 0.15 … 1 m
  • Operating Principle: Diffuse reflection
  • Switching Principle: NO (normally open)

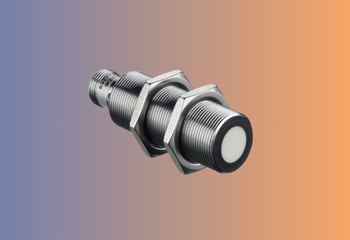

HTU418B-400/4T4-M12 | 50124268<br />

HTU418B-400/4T4-M12 | 50124268



  • Part No. : 50124268
  • Series: 418B
  • Design: Cylindrical
  • Operating range: 0.025 … 0.4 m
  • Operating Principle: Diffuse reflection
  • Switching Principle: NO (normally open)
Leuze Light section sensors: LES 36 Series<br />

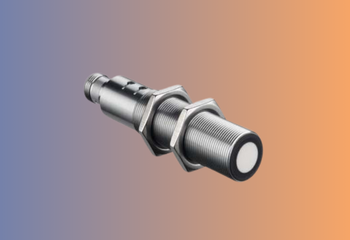

HTU418B-400.X3/LT4-M12 | 50124267



  • Part no.: 50124267
  • Series: 418B
  • Design: Cylindrical
  • Operating range: 0.025 … 0.4 m
  • Operating Principle: Diffuse reflection
  • Switching Principle: IO-Link / NC contact/NO contact

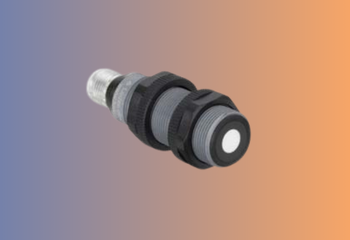

RKU318-800/2T-M12 | 50136081<br />

RKU318-800/2T-M12 | 50136081



  • Part no.: 50136081
  • Series: 318
  • Design: Cylindrical
  • Operating range: 0 … 0.8 m
  • Operating Principle: Reflection principle
  • Switching Principle: NO (normally open)
